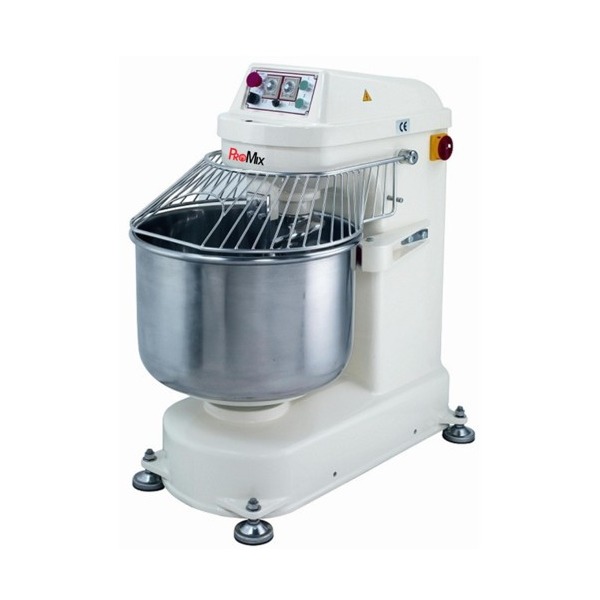

SM-70 Spiral Mixer - 40KG

Spiral Mixers

Request more info
SM-70 Spiral Mixer - 40KG

The ProMix Belt-driven Spiral Mixers are specially designed for busy retail bakeries. Heavy-duty and easy to use!

More Information

To find out more about this product please click below to download an information sheet.

Download PDF


  • Bowl capacity: 24kg flour / 40kg wet dough mix / 70L
  • Full belt-driven mixer
  • Heavy duty design
  • 2 Powerful motors, one to drive the spiral, one to drive the bowl
  • High efficiency 2-speed controls give positive results of dough mixing
  • 2 Timers, timer controlled mixing with manual override
  • Strong stainless steel spiral-agitator, guide bar and bowl
  • Equipped with overload relay to protect motor and transmission components
  • Stainless steel safety wire guard, automatic shut-off when guard is lifted for safety
  • Mixer is baked and coated with long lasting and chip-resistant enamel paint
Model SM-70
Max. capacity flour 24 KG
Max. capacity Dough 40 KG (wet dough mix)
Bowl capacity: 70 L
Dimensions WxDxH (mm) 540 x 950 x 1050
Motors Power Spiral: 2.5 HP / Bowl: 1/2 HP
Voltage: 400 V
Weight 205 KG
