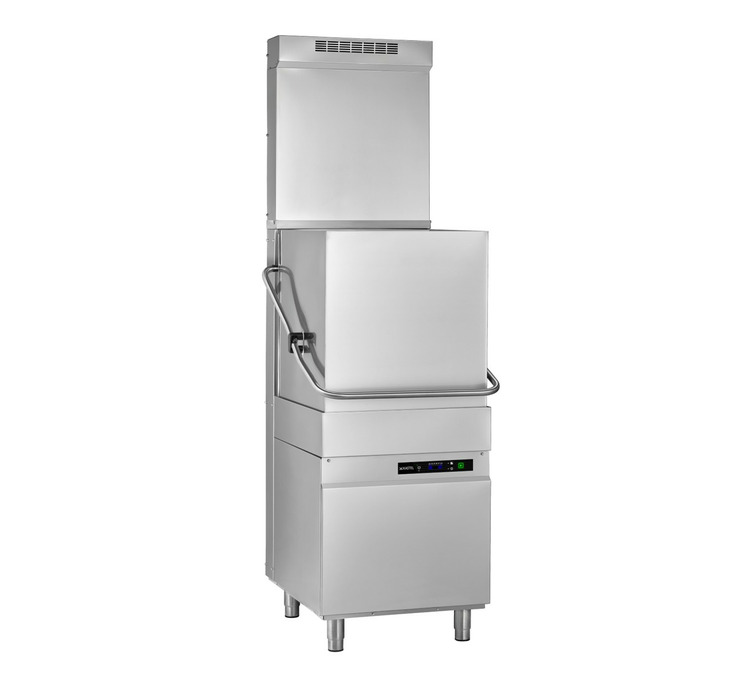

HK850E ES Hood Type Dishwasher - 500x500 with Condenser

Hood Type Pass-through Dishwasher

Request more info
HK850E ES Hood Type Dishwasher - 500x500 with Condenser

The HK 850E ES combines powerful PRS rinse performance with an integrated condenser that cuts steam emissions, improves comfort, and reduces energy use — delivering cleaner air and cleaner dishes in every cycle.

More Information

To find out more about this product please click below to download an information sheet.

Download PDF

The HK 850E is a high‑efficiency hood‑type dishwasher designed for professional kitchens that demand reliable performance and reduced energy consumption. Equipped with the PRS atmospheric boiler system, Energy Saving System (ES), and Electronic Smart Interface, it delivers stable hot‑rinse results and consistently high hygiene standards.

Its integrated condenser significantly reduces steam release, keeping the workspace cooler and improving operator comfort. With a double‑skinned insulated hood, stainless‑steel construction, triple filtration, and an automatic self‑cleaning cycle, the HK 850E ES combines durability, efficiency, and ease of use in one robust machine

Key Features

  • Electronic Smart Interface with clear LCD display
  • PRS System (Atmospheric boiler + Break tank) for constant rinse temperature & pressure
  • ES Energy Saving System for reduced operating costs
  • Double‑skinned insulated hood for lower heat and noise emissions
  • Automatic cycle start when the hood closes
  • Stainless‑steel rotating wash & rinse arms, fully removable
  • Vertical self‑cleaning wash pump for long‑term reliability
  • Triple water filtration for cleaner wash water and reduced maintenance
  • Preformed wash tank with rounded corners for improved hygiene
  • Double electric detergent & rinse‑aid dispenser
  • Thermostop hot‑rinse for guaranteed sanitisation
  • End‑of‑day automatic self‑cleaning cycle
  • Low water consumption: 2.5 L per cycle
Model HK850E ES
Dimensions (WxDxH) 760x793x2254 mm
Rack dimensions 500x500 mm
Racks/ hour 60 - 30 - 20 -7
Washing cycles 4 cycle durations: 1 min, 2 min, 3 min, and 9 min
Useful washing height 425 mm
Trays GN 1/1
Body construction Entirely AISI 304 stainless steel
Rinsing and washing arms with stainless steel tube
Stainless steel filters Yes
Tank heating element - Tank capacity 2.8 kW - 30 Ltr
Boiler heating element - Boiler capacity 6 kW - 11 Ltr
Washing pump power 0.75 kW
Total power input / Current 6.75 kW
Input Voltage 230 V - 1 Phase - 32 A
Recommended inlet water temperature +55 C
Water hardness 7-10 F
Water consumption per cycle (inlet suggested pressure 2 BAR) 2.5 Ltr
Double electric detergent rinse and rinse aid dispenser Electric
Drain pump Yes
Rinse pump Yes
Rinse cycle on demand Yes
Energy-Saving device Yes
Backflow prevention Break-tank
Control panel Electronic controls with LCD display
PRS System Built-in atmospheric boiler
Self-diagnostic system Yes
Self-cleaning cycle Yes
Weight 182 KG
Supplied with 2 plate racks 12/18 plates, 1 glass rack, 2 cutlery baskets, 1 inlet hose (2m length), 1 drain hose (2m length)
